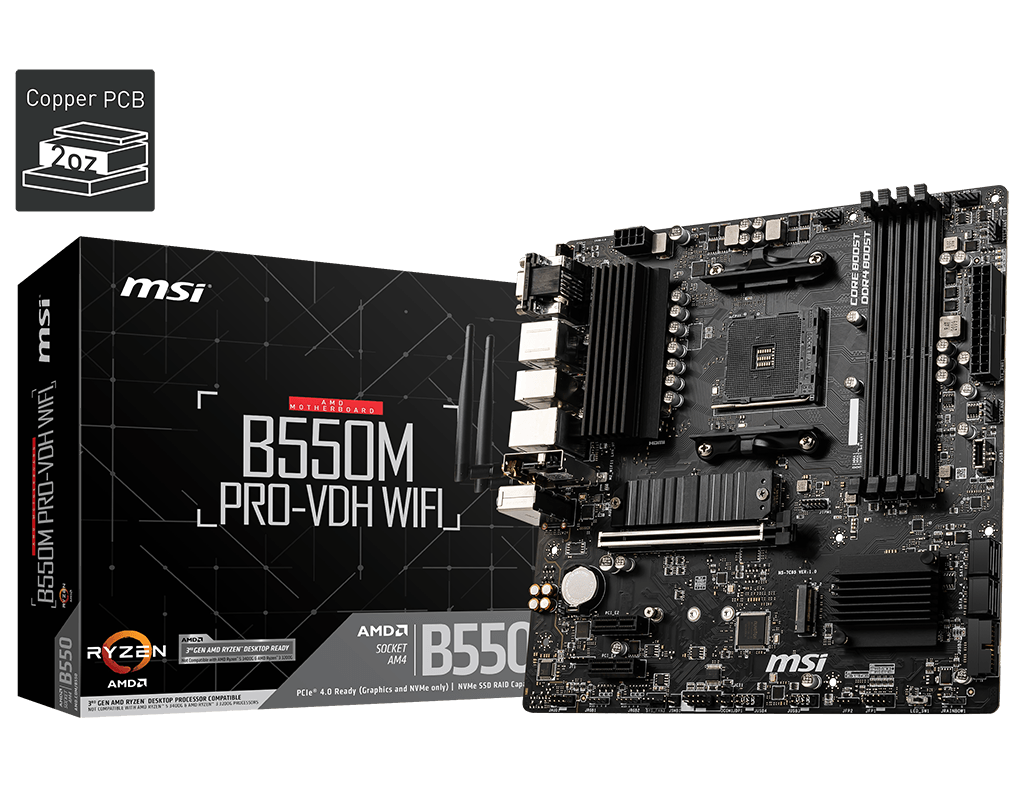

Model Name B550M PRO-VDH
CPU Support Support for 3rd Gen AMD®
Ryzen™
processors and future
AMD®
Ryzen™
4000 G-Series Desktop Processors
CPU Socket AMD Socket AM4
Chipset AMD®
B550 Chipset
Graphics
Interface
1x PCIe 4.0 / 3.0 x16 slot
Display Interface DisplayPort, HDMI™, VGA – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4400 MHz (OC)
Expansion Slots 2x PCI-E 3.0 x1 slots,
Storage 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s
ports
USB ports 7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C)
+ 6x USB 2.0
LAN Realtek®
RTL8111HN Gigabit LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost
